Following on from our previous blog post about SKY+ RC6 IR codes, we have now completed the project and are about to ship to its new owner – a friend of ours.

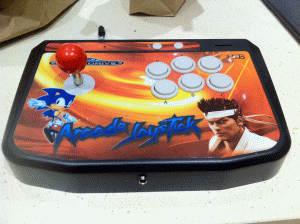

We purchased a Sega megadrive Arcade style games console which was BNIB for €25 ($35) and disabled all of the built-in gaming functionality. We then wired up each of the 12 available switches (Joystick & Arcade style buttons) to the Arduino Nano which was placed onto an Arduino prototyping shield and mounted to the enclosure using ‘lots’ of hot glue. Note some of these consoles come with an additional 2 buttons, which can bring the total to 14. In addition, the joystick has 8 positions in total of which we used only 4 as it would be too difficult for the user to manage all eight. Continue reading Custom TV remote control using Arcade style console
