Air Conditioners: Recording long Infrared Remote control signals with Arduino

Recently we have been helping several members on the Arduino forum to record and playback their remote control signals from their Air Conditioners. These signals are typically much longer than those of TVs or common media devices. The 2 most popular libraries for Arduino, IRremote & IRlib are excellent, but have some limitations which we have covered in a previous post. In this post we address one particular issue that is proving challenging to users.

airconremote
Long Infrared signals prove challenging for Arduino users

Continue reading Air Conditioners: Recording long Infrared Remote control signals with Arduino

Update: AnalysIR Auto-clean feature for IR signals

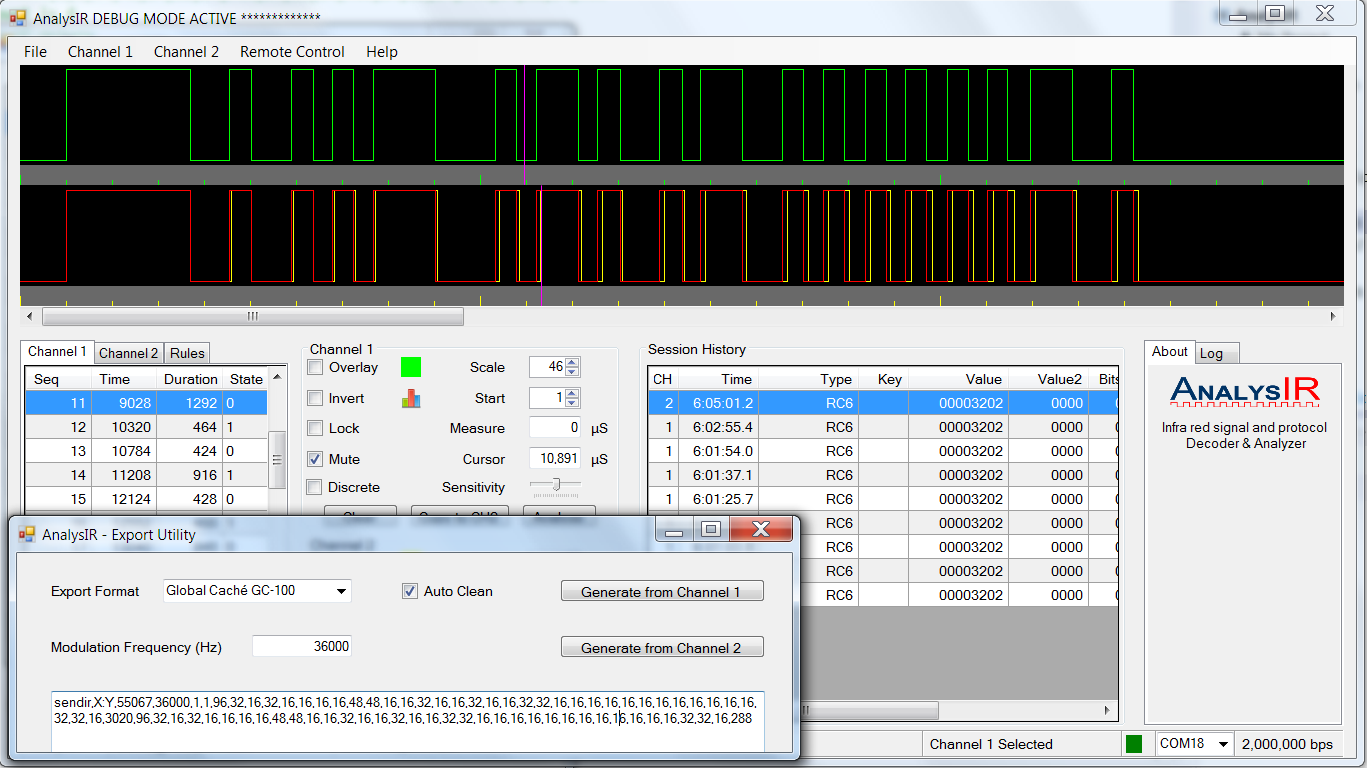

Here is a screenshot showing the new automatic signal cleaning feature in AnalysIR. You will notice in channel 2 (yellow & red) where I have overlaid the recorded signal from CH1 (green) on top of the cleaned signal in CH2 (yellow). The green & red signal is the recorded signal & the yellow signal is the ‘cleaned’ signal.

AutoClean_screenshot
Screenshot of AnalysIR – Auto-clean feature

Note: Use CTRL+, CTL-, or CTRL0   –   to zoom in & out on most browsers
The reason for the signal degradation in the first place is due to the way all IR receivers work. Typically, marks will be shorter and spaces will be longer. Also, weak IR signals will also alter the duration of marks/spaces.

Combined with AnalysIR’s sensitivity setting for decoding it is possible to rebuild a perfect signal from a really poor signal.

With this new ‘Bonus Feature’, we can export almost perfect signals from AnalysIR and re-import the exported signal to compare against the original recorded signal. This will be a great benefit when designing IR devices or circuits.
